Square Scrub

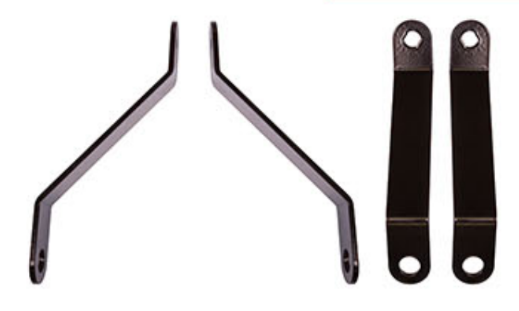

Compatible with the 3/8″ Tension Handle Assembly. The 3/8″ Handle Adjustment Bars are compatible with older style Square Scrub machines with serial numbers 32U11326 or greater. The 3/8″ Tension Handle Assembly (SS 01022Z) can be found on page 22. Left – SS 01021ZL 3/8 Right – SS 0102lZR 3/8

Compatible with the 5/8″ Tension Handle Assembly. The 5/8″ Handle Adjustment Bars are compatible with older style Square Scrub machines with serial numbers 32U11325 or lower. Left – SS 01021ZL 5/8 Right – SS 01021ZR 5/8

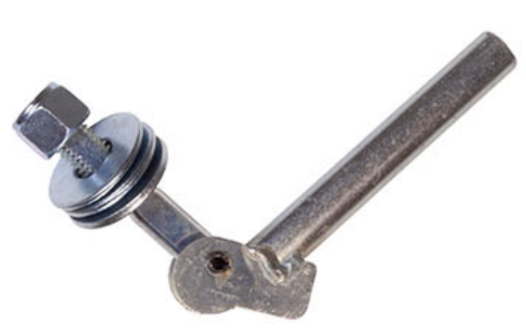

Compatible with 5/8″ handle adjustment bars. The 5/8″ Tension Handle Assembly is compatible with older style Square Scrub machines with serial numbers 32U11325 or lower. The 3/8″ Tension Handle Assembly (SS 01022Z) can be found on page 22.

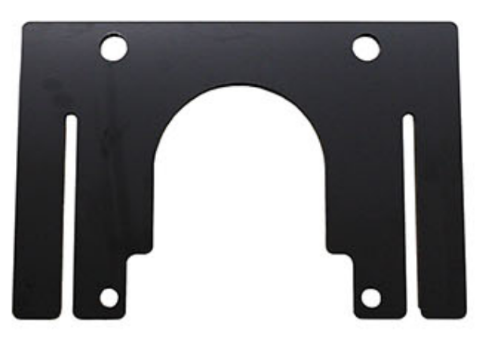

Increasing weight helps the machine penetrate thick finishes. This 211b plate is a great way to effectively and safely add additional weight to your machine. These weights can be fitted to machines that currently have Slotted Weights. This weight cannot be used on any PIVOT, or 28″ machine.

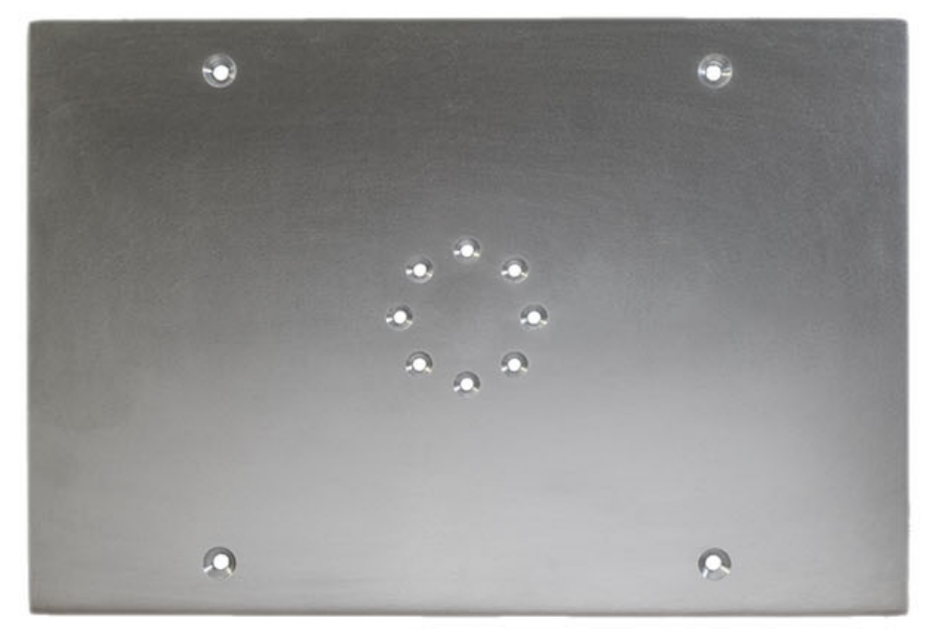

The Aluminum Driver Plate is compatible with Square Scrub Machines with serial numbers beginning with 32U. Not for use with Pivot machines. 20″ – SS 01034Z 28″ – SS 142864

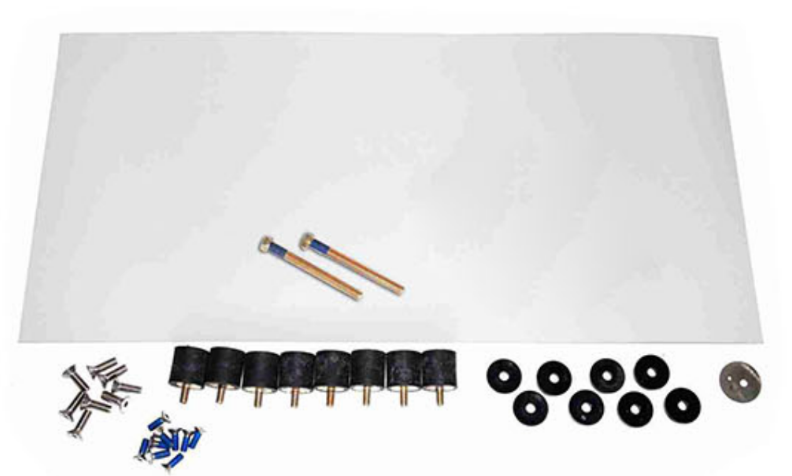

Replacement Part for 28″ Machines with serial numbers beginning with 32U. The Weight Bolt Kit has been created to make this standard maintenance process easier. Items include: grip face, 2 weight bolts, 8 isolators, required hardware needed for repair, and thread lock.

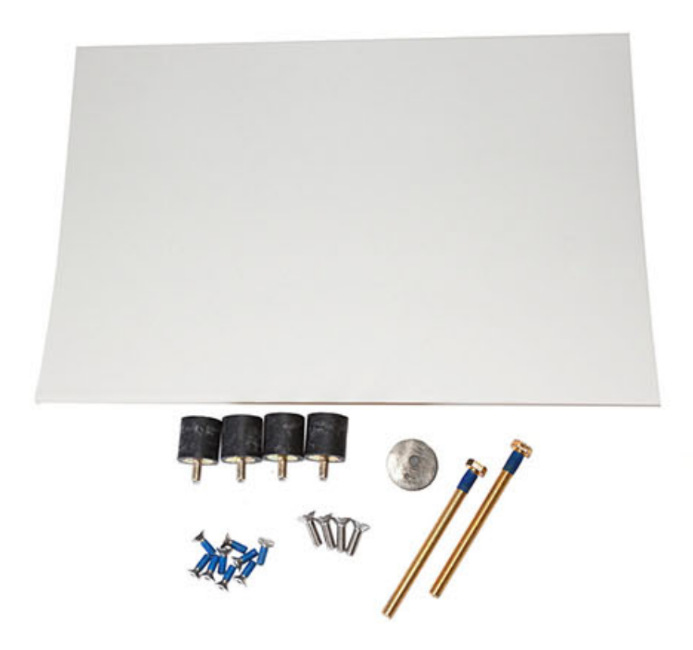

Replacement Part for 20″ Machines with serial numbers beginning with 32U. The Weight Bolt Kit has everything needed to repair the weight bolt system. Items include: grip face, 2 weight bolts, 4 isolators, required hardware needed for repair, and thread lock.

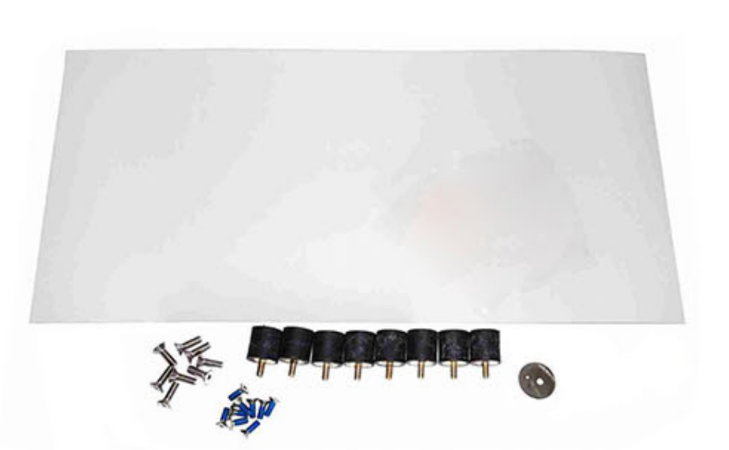

Replacement Part for 28″ Machines with serial numbers beginning with 32U. The Isolator Repair Kit has been created to make this standard maintenance process easier. Items include: grip face, 8 isolators, required hardware needed for repair, and thread lock.

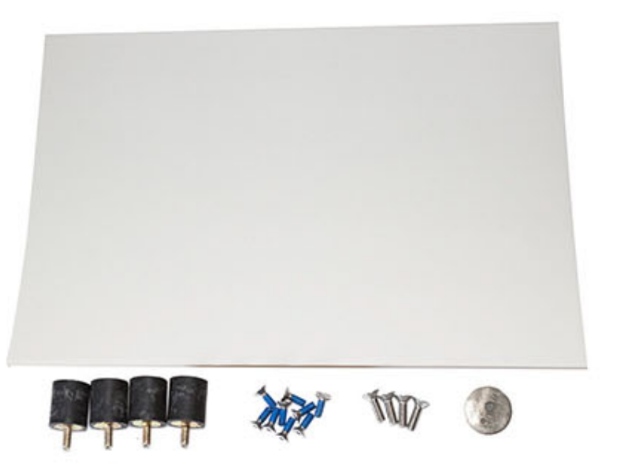

Replacement Part for 20″ Machines with serial numbers beginning with 32U. The Isolator Repair Kit has been created to make this standard maintenance process easier. Items include: grip face, 4 isolators, required hardware needed for repair, and thread lock.

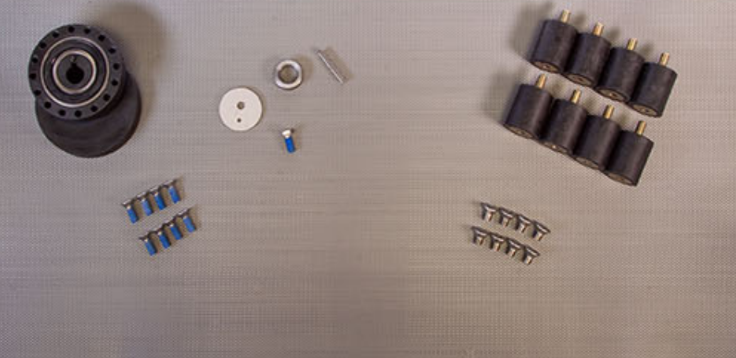

Replacement part for 28″ machines with serial numbers beginning with 32U. This kit contains everything needed to replace the eccentric assembly for the EBG-28. When replacing, Square Scrub recommends installing new isolators as well. Included are: 8 isolators, isolator bolts, motor shaft spacer, motor shaft cap bolt, bearing bolts, eccentric assembly, crush washer, eccentric assembly key, grip face. Not shown: anti-seize, & 100% silicone.
